README_en.md
License
AGPLv3 (https://www.gnu.org/licenses/agpl-3.0.en.html)
Credits
Pilot project of the Democratic Digitalization Plan led by Xnet and promoter families. Software created by IsardVDI and 3iPunt with the collaboration of MaadiX.net, Affac, the Barcelona City Hall and the Barcelona Education Consortium.
What's this
This project allows to bring up with ease a full identity provider and many apps to have an environment thought for schools and universities. The project will provide an integrated solution to handle the common environment in education:

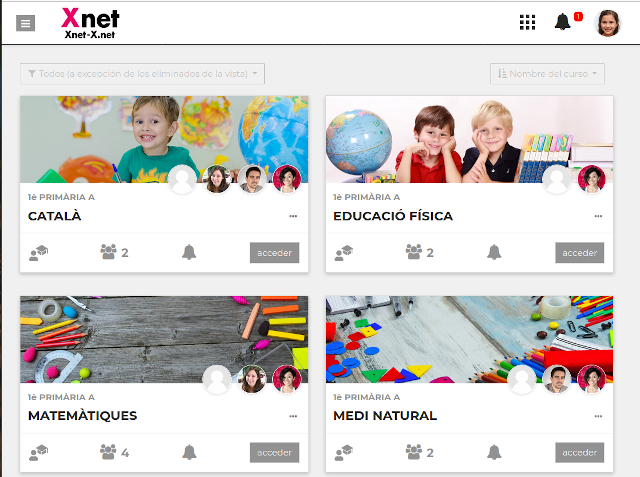

- Classrooms: A Moodle instance with custom theme and custom plugins.

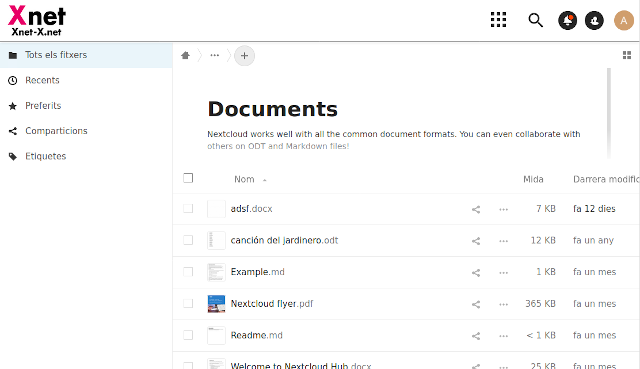

- Cloud drive: A Nextcloud instance with custom theme and custom plugins.
- Documents: An Onlyoffice instance integrated with Nextcloud.
- Web pages: A Wordpress instance with custom theme and custom plugins.
- Pad: An Etherpad instance integrated with Nextcloud.
- Conferences: A BigBlueButton integrated with Moodle and Nextcloud. This needs a standalone host.
- Forms: A forms Nextcloud plugin.
- ... (some apps like jitsi or BigBlueButton are not fully integrated right now)
![]() |
![]() |

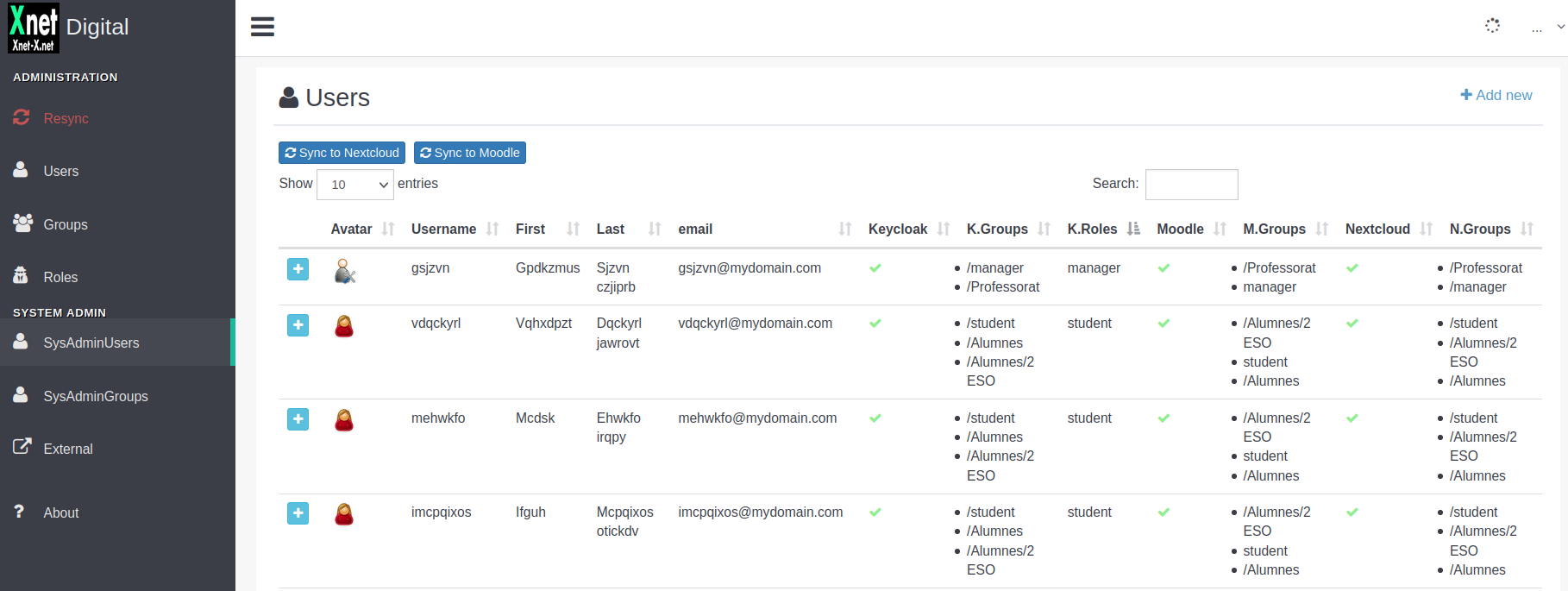

Administration interface

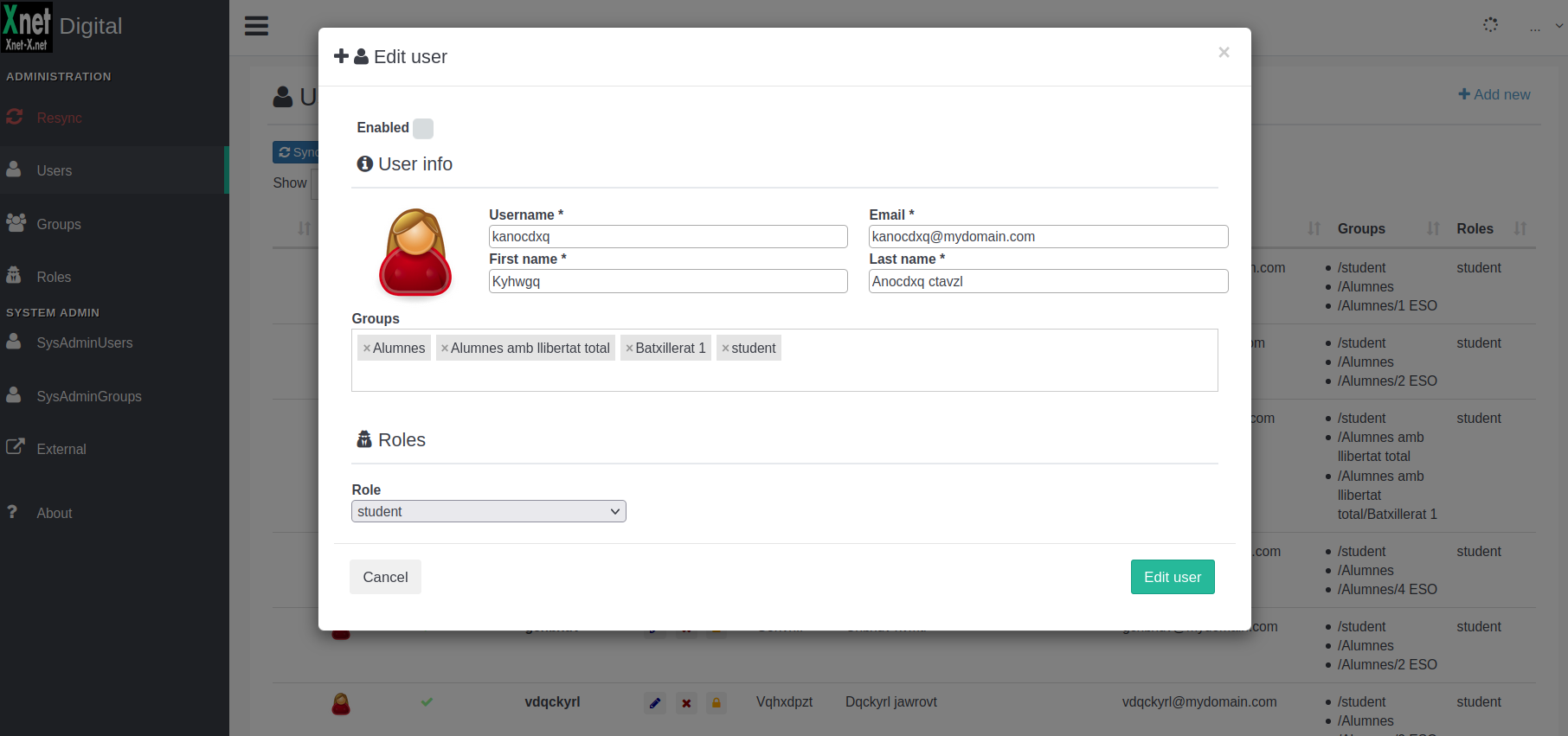

Now there is an administration interface that allows to easily manage users and groups and keep it in sync between applications. This is done by executing actions on the different applications apis.
![]() |
![]() |
---|
To easily migrate and insert users and groups to the system there are also two provided imports:
- From Google Admin Console as a JSON dump
- From a CSV file
This admin interface is now in an alpha status but allows to manage users in sync between Keycloak, Moodle and Nextcloud.
Project status
Functional, but we are still working on and will have lots of improvements in the upcoming months. Some automatizations need to be done, specially with SAML integration in moodle and Keycloak.
Your collaboration is welcome! Just fork this repo to develop and do a PR or open an issue.
DigitalDemocratic Documentation
This documentation is written in Markdown using MkDocs+Gitlab.
See docs
directory for Markdown files or the auto-built site.
Quick start
cp digitaldemocratic.conf.sample digitaldemocratic.conf
Changes default passwords
./securize_conf.sh
Edit digitaldemocratic.conf file variables to suit your needs.
cp -R custom.sample custom
Edit and replace files to personalize the system.
The first time execute:
./dd-ctl repo-update
And then:
./dd-ctl all
NOTE: The SAML Auth in plugin is now automated:
-
Moodle: Not fully automated.
- Login to Moodle as admin via: https://moodle.<domain>/login/index.php?saml=off
- Go to authentication configuration: https://moodle.<domain>/admin/settings.php?section=manageauths
- Enable SAML2 clicking the eye.
- Click on configuration on SAML2
- Click on the Regenerate certificate button inside the form. After that go back to SAML2 configuration page.
- Click on the Lock certificate button.
- In the terminal execute the script to autoconfigure: docker exec isard-sso-admin python3 moodle_saml.py
- The last thing is to purge moodle cache: missing docker exec php-fpm7 script, do it through moodle web ui
-
Nextcloud: Fully automated. After finishing the make all it should be ready. In case it fails refer to isard-sso/docs.
-
Wordpress: Practically automated. After finishing the make all it should be ready and you will only need to activate the plugin. In case it fails refer to isard-sso/docs.
Extended Installation
You can start this project in any docker & docker-compose host (any OS should work). To install those packages in your distro refer to docker & docker-compose in this documentation and in the sysadm folder you have some scripts.
Any distro should work but, if you want to use our sysadm scripts to install docker & docker compose use Debian Buster (10).
Clone and submodules
git clone https://gitlab.com/digitaldemocratic/digitaldemocratic/
cd digitaldemocratic
git submodule update --init --recursive
docker
Refer to the official documentation (https://docs.docker.com/engine/install/) or use our sysadm script if you are on a Debian Buster (10).
docker-compose
Refer to the official documentation (https://docs.docker.com/compose/install/) or use our sysadm script if you are on a Debian Buster (10).
Setup
Copy digitaldemocratic.conf.sample to digitaldemocratic.conf and edit to satisfy your needs. At least (for development) you should adapt the DOMAIN envvar to your root domain.
- PRODUCTION: You'll need a multidomain dns (or redirect all the subdomains) to your server IP.
- DEVELOPMENT: You'll have to edit your /etc/hosts and add all the required domains to your development server IP.
Subdomains
- Keycloak: sso.<yourdomain.org>
- Api: api.<yourdomain.org>
- Moodle: moodle.<yourdomain.org>
- Nextcloud: nextcloud.<yourdomain.org>
- Wordpress: wp.<yourdomain.org>
- Onlyoffice: oof.<yourdomain.org>
- Etherpad: pad.<yourdomain.org>
- (optional) FreeIPA: ipa.<yourdomain.org>
NOTE: To test it in your computer without a domain you'll need to simulate a domain and set it in digitaldemocratic.conf and then add to your /etc/hosts this subdomains to your IP.
For example:
echo '192.168.0.5 mydomain.org admin.mydomain.org nextcloud.mydomain.org moodle.mydomain.org sso.mydomain.org api.mydomain.org wp.mydomain.org pad.mydomain.org oof.mydomain.org' >> /etc/hosts
Customization
Recursively copy the custom.sample folder to custom and edit the yaml personalization files and menu and substitute the image.
Start the project
The first time (and if you want to upgrade to the latest version later) you should execute:
./dd-ctl update-repo
And after:
./dd-ctl all
Then you can start or stop with:
./dd-ctl down
./dd-ctl up
Integration
Read the SAML_README.md file in isard-sso/docs folder to integrate all the applicactions. Now, Nextcloud and Wordpress should integrate automatically with the Keycloak.
